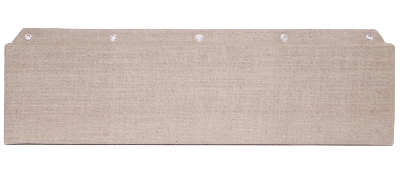

ATS Acoustic Baffle -12 x 48 x 2


ATS Acoustic Baffle - 12x48x2
Point to an image below to see a larger version.


  • Price and Order
  • Item Description
  • Q & A

Specs and Features

  • Baffle Dimensions: 12"x48"x2"
  • Core material: Roxul Rockboard 60, a 6 lb / cubic foot mineral wool board
  • Built to last with a solid aluminum frame that protects edges and corners from dents and damage
  • Aluminum bar along the top hanging tab provides strength, security, and completely prevents sagging at attachment points
  • Attractive, textured cover fabric is 100% natural-fiber jute, available in a wide range of colors to match your style
  • Quick, easy shipping via UPS Ground
  • Quality design and workmanship
  • Manufactured in the USA

Absorption Coefficients

1/3 Octave Band Center Frequencies, Hz
125250500100020004000NRC
0.480.731.451.991.891.781.52
Data from independent testing of this item by RAL, a leading acoustical laboratory.

Installation

We offer these hardware options to fit common installation scenarios. Select your preferred installation hardware option on the Price and Order tab.

  • Steel Cable Assembly - Steel cable assemblies include 6" or 12" steel cables and quick links to securely join the cable ends. The steel cable assemblies are designed to loop through a closed hook like an eyebolt anchor (available separately), or in the case of longer cables, over a structural member such as a truss.

  • Plastic Tie and Screw Mount - The plastic tie mounts include 14" plastic ties, tie mounts, and 3" bolts with wing toggle anchors. Install the screw mounts on any suitable surface then loop the plastic ties through them.

  • For more details on installation hardware and methods, see our Baffles Installation Guide.


How many do I need?
Answer a few questions and our online systems provides an instant analysis.
What do the ratings mean?
Learn about acoustic panel sound and fire ratings.

What will shipping cost?
Add this item to your cart to view shipping cost.
How soon can I get them?
We custom-build this item when you order.
Currently ships within: 5-7 business days.
A slim baffle for the right look or extra clearance.
  • Extra-dense core materials provide superior sound absorption performance especially at low frequencies.
  • Aluminum frame ensures crisp, square edge lines that last, and provides superior durability and resistance to damage during and after installation.
  • This half-height size works when you prefer a slimmer look, and in rooms with more limited ceiling clearance.
  • Since both sides of the baffle are exposed, you get twice as much sound absorption as with a wall or ceiling panel.

Price: $69.95
We custom-build this item when you order.
Currently ships within: 5-7 business days.
Made in the USA.


Choose your fabric color *

More info on colors and fabrics.

Baffles made with Guilford of Maine fabric meet ASTM E84 Class A fire rating standards. The other fabric selections are not fire rated.



Black

Ivory

Natural

Burgundy

Parchment
Add $3.95
Gray
Add $3.95
Tomato
Add $3.95
Espresso
Add $3.95
Mocha
Add $3.95
Royal
Add $3.95
Nugget
Add $3.95
Guilford of Maine Pitch
Add $9.75
Guilford of Maine Linen
Add $9.75
Guilford of Maine Tan
Add $9.75
Guilford of Maine Claret
Add $9.75
Guilford of Maine Cream
Add $13.70
Guilford of Maine Oyster
Add $13.70
Guilford of Maine Latte
Add $13.70
Guilford of Maine Brown
Add $13.70
Guilford of Maine Bright
Add $13.70
Guilford of Maine Light Olive
Add $13.70
Guilford of Maine Pale Green
Add $13.70
Guilford of Maine Light Blue
Add $13.70
Guilford of Maine Blue Smoke
Add $13.70
Guilford of Maine Platinum
Add $13.70
Guilford of Maine Merle Grey
Add $13.70
Guilford of Maine Warm Grey
Add $13.70
Optional hanging hardware:

Check out the Item Description section for details about what is included with each option. Please note that the cable assemblies are designed to be looped, so hanging distance will be approximately half the length of the cable.

Optional eyebolt anchors

These eyebolt anchors can be used with the steel cable assemblies to tie into drywall, wood paneling, steel trusses, or I-beams.

RUSH Production

We’ll put your order at the front of the line. See details.

Yes - Add 15%

Want something special? No problem!

Special sizes? Green materials? Alternative installation methods? You name it! Just give us a call toll-free at 1-866-787-7881.
