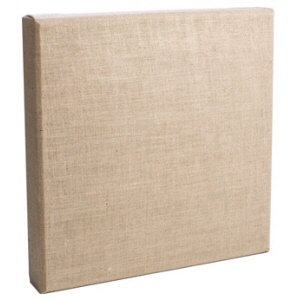

ATS Acoustic Panel - 24 x 24 x 4


ATS Acoustic Panel - 24 x 24 x 4
Point to an image below to see a larger version.


  • Price and Order
  • Item Description
  • Q & A

These thicker panels offer the same construction and design as our 2-inch panels. The only difference is the added thickness that increases the absorption at low frequences (100-500Hz).

Specs and Features

  • This panel is 4 inches thick. [?]
  • Average weight per panel: 8 lbs
  • Core material is Roxul AFB mineral wool, a highly effective sound absorber (NRC 0.95 out of 1). Higher NRC means fewer panels are needed to treat your space.
  • Built to last with a solid wood internal frame that protects edges and corners from dents and damage.
  • 1/4-inch wood back panel for easy and secure installation without glue. Wall-mounting hardware and instructions included.
  • Leaves no more wall damage then hanging a picture, ideal for temporary or rented space.
  • Attractive, textured cover fabric is 100% jute, available in a range of colors to match your style.
  • Combine sizes and colors in creative patterns for a unique and visually impressive look.
  • Quick easy shipping via UPS Ground.
  • Furniture-quality design and workmanship. Handcrafted in the USA.

Installation

Our professional installation kit is included at no extra charge. Includes aluminum clips, screws, and anchors for neat and secure installation on drywall, concrete, or wood walls. Click here for full installation instructions. (PDF)

New! For perfect positioning and easy installation, our no-measuring installation template is now included free with all ATS Acoustic Panel orders.

Absorption Coefficients

1/3 Octave Band Center Frequencies, Hz
506380100125250500100020004000NRC
0.220.260.280.680.651.101.211.111.081.071.15
Data from independent testing of ATS Acoustic Absorption Panels by RAL, a leading acoustical testing laboratory.

If you aren’t sure which panel thickness is best for you, check our Acoustic Panels FAQ page.


Q & A for the ATS Acoustic Panel - 24 x 24 x 4

Can I install these panels across a corner?

Yes, if you choose the open-back option and you are interesting in maximizing low frequency absorption, you may choose to install some or all of your panels across a corner. We have a unique corner installation kit that makes it easy. For details see our corner installation instructions (PDF).


Application Tips


Viewing general info. Click an icon to view info for a specific application.


How many do I need?
Answer a few questions and our online systems provides an instant analysis.
What do the ratings mean?
Learn about acoustic panel sound and fire ratings.

What will shipping cost?
Add this item to your cart to view shipping cost.
How soon can I get them?
We custom-build this item when you order.
Currently ships within: 5 - 7 business days.
Extra bass absorption in a versatile size.

Price: $40.95
We custom-build this item when you order.
Currently ships within: 5 - 7 business days.
Made in the USA.


Choose your fabric color *

More info on fabrics and colors.

Black

Ivory

Natural

Burgundy

Parchment
Add $3.95
Gray
Add $3.95
Tomato
Add $3.95
Espresso
Add $3.95
Mocha
Add $3.95
Royal
Add $3.95
Nugget
Add $3.95
Customer-Supplied
Add $5.00
Desired edge profile *

Panels with beveled edges have a 1/2-inch 45-degree eased edge around the entire rim of the panel. Panels with square edges have no bevel, like typical boxed art.

Beveled

Square

Fire Rating *

This item is not fire rated. If you require or prefer fire resistance for your project, see our fire rated acoustic panels or our hardened-edge acoustic panels with fire rating.

Installation Hardware

For flush mounting to a flat surface, installation hardware is included. For mounting across a corner, leaving a triangle-shaped space behind the panel, check this box to receive our corner installation kit instead. Corner installation is most often used with open-back panels.

Corner Installation Kit - Add $6.35
RUSH Production

We’ll put your order at the front of the line. See details.

Yes - Add 15%

Want something special? No problem!

Your choice of fabric? Odd angles or special cutouts? Eco-friendly or recycled core materials? You name it! Just give us a call toll-free at 1-866-787-7881.
